Die Casting Molds
Die casting mold (tooling) design and manufacturing methods determine the life span and quality of the tooling parts. We have the expertise and capacity to design any variety and configuration of die casting molds for both in-house production and export.
For in-house tooling manufacturing, after the mold order is placed, we will provide professional 3D tooling drawings and design for the manufacturing engineering analysis report. After the tooling drawings and engineering report is approved and we will submit samples with material certificate, 5pcs initial samples inspection report and surface finish qualification to customers for an approval exactly within the confirmed lead time.
We thinks what buyers think, the urgency of urgency to act during the interests of a purchaser position of theory, allowing for much better high-quality, reduced processing costs, charges are more reasonable, won the new and outdated consumers the support and affirmation for factory Outlets for China Pre-Hardened Customization Steels OEM Die-Casting Mold Base for Block Move for Cylinder Block, We welcome consumers, business enterprise associations and friends from all elements of your world to get in touch with us and look for cooperation for mutual rewards. factory Outlets for China Die-Casting Mould, Molding, In the increasingly competitive market, With sincere service high quality products and well-deserved reputation, we always supply customers support on solutions and techniques to achieve long-term cooperation. Living by quality, development by credit is our eternal pursuit, We firmly believe that after your visit we will become long-term partners.
Die Casting Molds Introduction:
Tooling Design Software: Pro/E/UG/ CAD/CAM/CAE/ Solid Works
Drawing Format: .igs, .step, .stp, .dwg, .pdf, etc.
Mold Size: Based on the parts’ drawings
Material: H13 or SKD61
Cavity: Single or Multiply
Tooling Life: 150K shots (Zinc Alloy Die Cast), 60K shots (Aluminium Alloy Die Cast Tooling)
Tooling Drawing Design Lead Time: 1-3 days
Design for Manufacturing Report Lead Time: 1-3 days
Tooling Making Lead Time: 30 days
Frist Time Mold Trial(T1): 30 days
Samples Making Lead Time: 3-5 days
Initial Sample Inspection Report Lead Time: 2-3 days

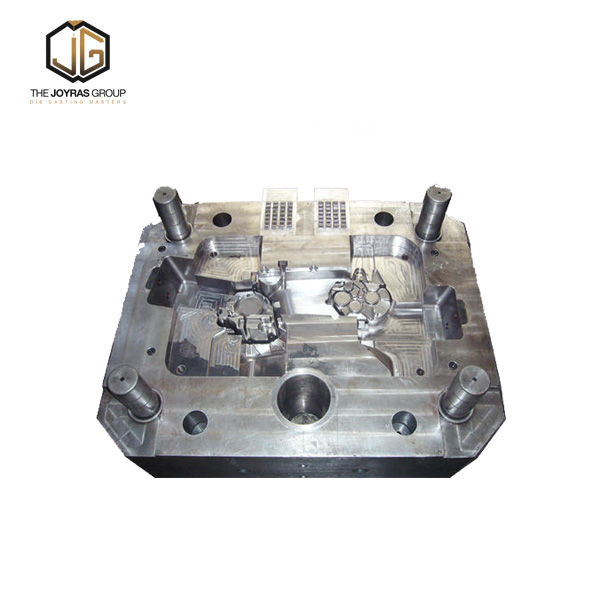

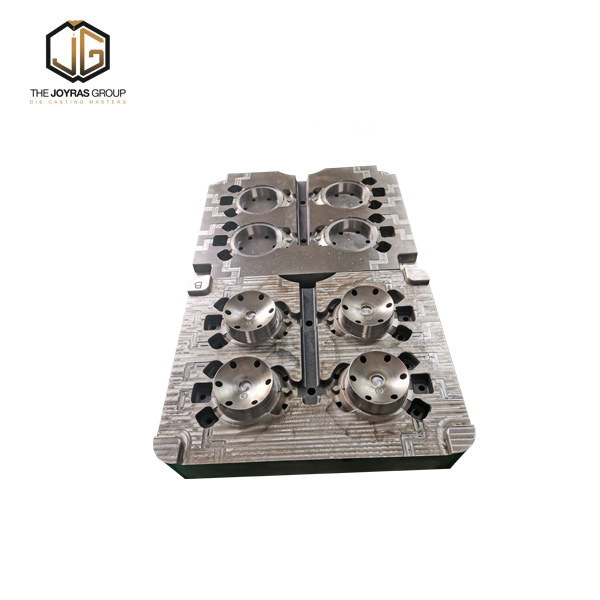

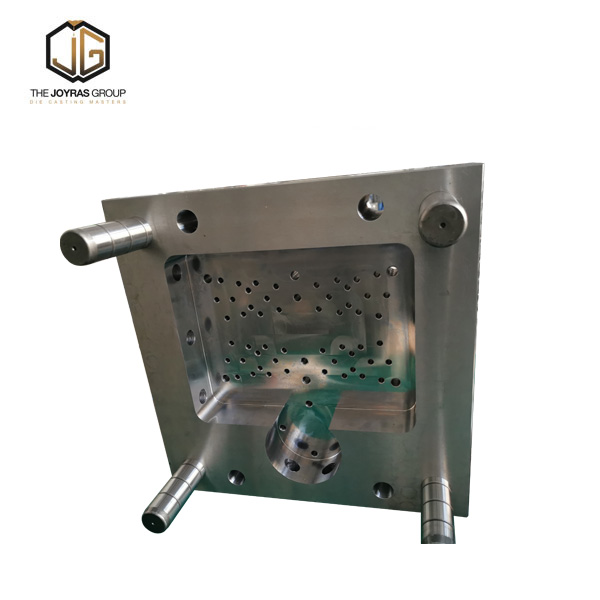

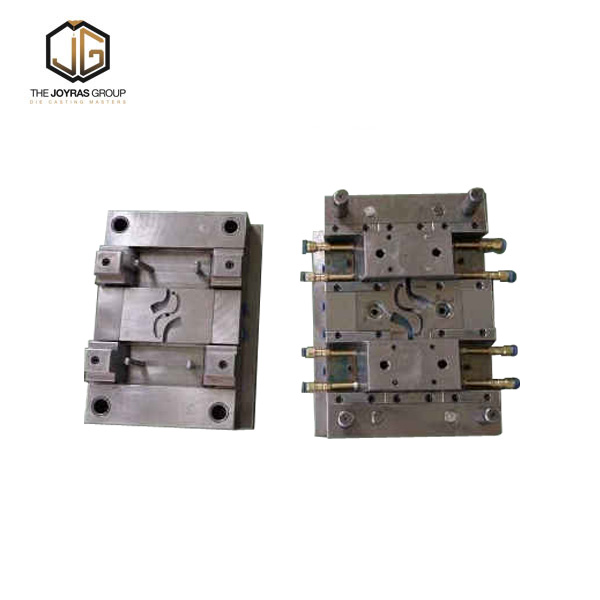

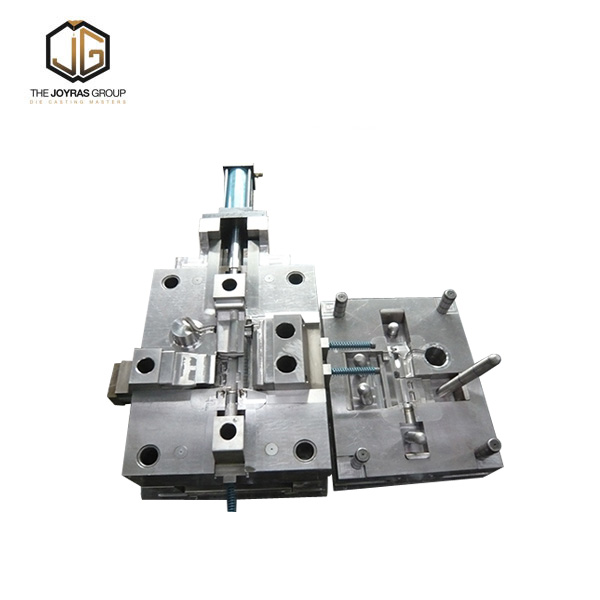

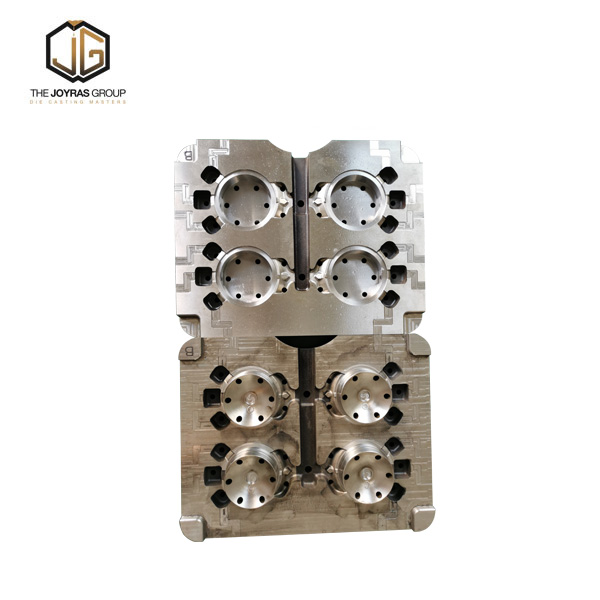

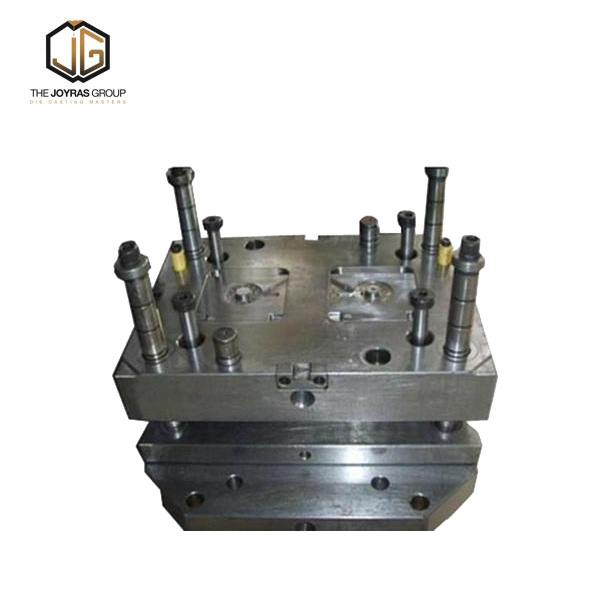

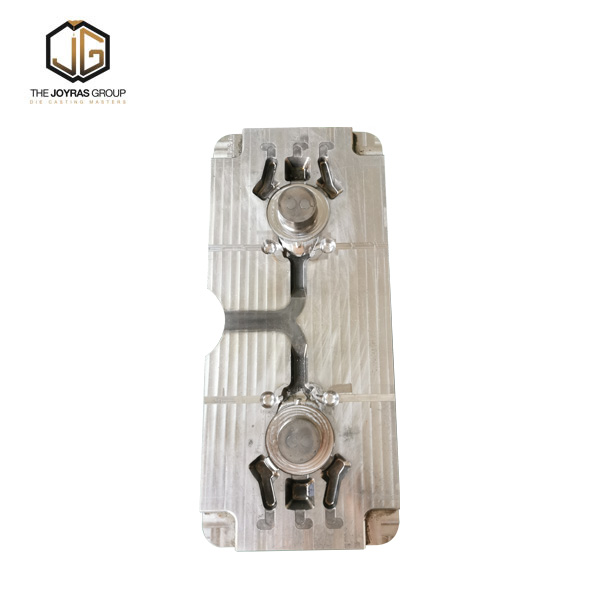

Examples of Die Casting Molds
Application Industries of Die Casting Molds:
● LED lighting
● Household Electric Appliances
● Office Equipment
● Hardware & Building Materials
● Medical Equipment
● Electronics
● Telecommunications
● Security Equipment
● Sports Equipment
● Automotive
Application Industries:
LED Lighting
Household Electrical Appliances
Office Equipment
Building Hardware Parts
Medical Equipment
Electronics
Telecommunications
Security Equipment
Sports equipment
Automotive
